TL134-CCT-DIM
Through the knob, the color temperature can be adjusted from 2700K to
6000K, and it can be dimmed from 0 to 100%
By rotating the front ring, the focus can be adjusted from 15° to 60°
Power:
10W, 20W, 30W, 40W
MAXIMUM ADJUSTABLE RANGE
AVAILABLE IN BLACK AND WHITE

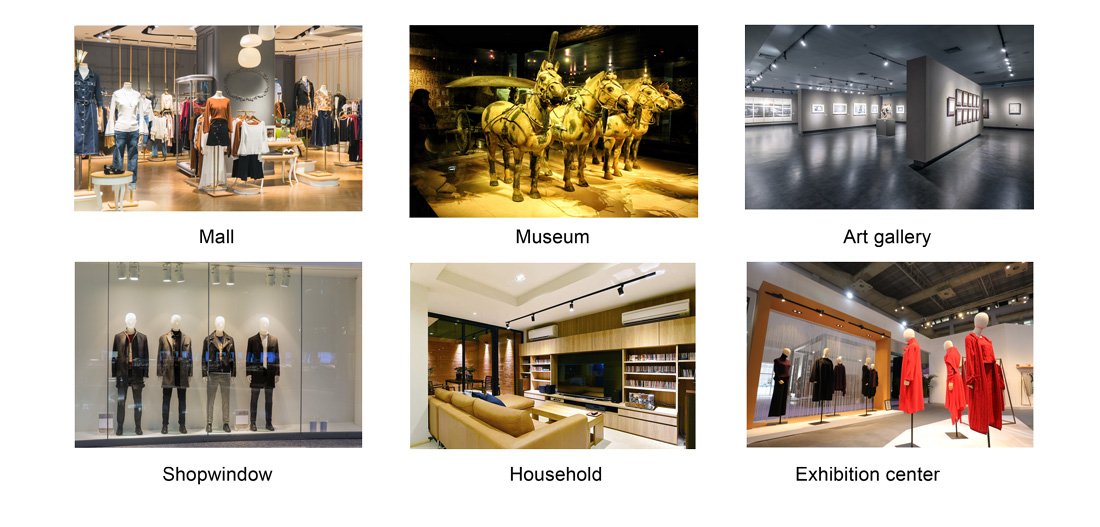

APPLICATIONS
Model No. | TL134-10W-CCT-DIM | TL134-20W-CCT-DIM | TL134-30W-CCT-DIM | TL134-40W-CCT-DIM |
Power | 10W | 20W | 30W | 40W |
Light Source | Dual color temperatures COB | |||
Light Efficiency | 80LM/W±10% | |||
Luminous Flux | 800LM | 1600LM | 2400LM | 3200LM |
Color Temperature | CCT 2700-6000K | |||
Color Rendering Index | Ra>80 / Ra>90 | |||
Beam Angle | Focusing 15-60° | |||
Input Voltage | 220-240VAC | |||
Frequency | 50-60 Hz | |||
Power Factor | >0.9 | |||
Dimming | 0-100% (0-10V DIM) | |||
Finish Color | White / Black | |||
Size (mm) | Ø65*142 | Ø75*162 | Ø95*172 | Ø105*172 |
Adapter | 2 / 3 / 4 / 6 wires | |||
Flicker | Flicker Free | |||
IP Rating | IP20 | |||
IK Rating | IK07 | |||
Operating Temperature | - 20°C to + 50°C | |||
Storage Temperature | - 30°C to + 70°C | |||
Life Span | >50,000Hrs (Ta=30°C@L70) | |||
Warranty | 5 Years | |||
