LL5075-600

LL5075 (LS5075)

Size:

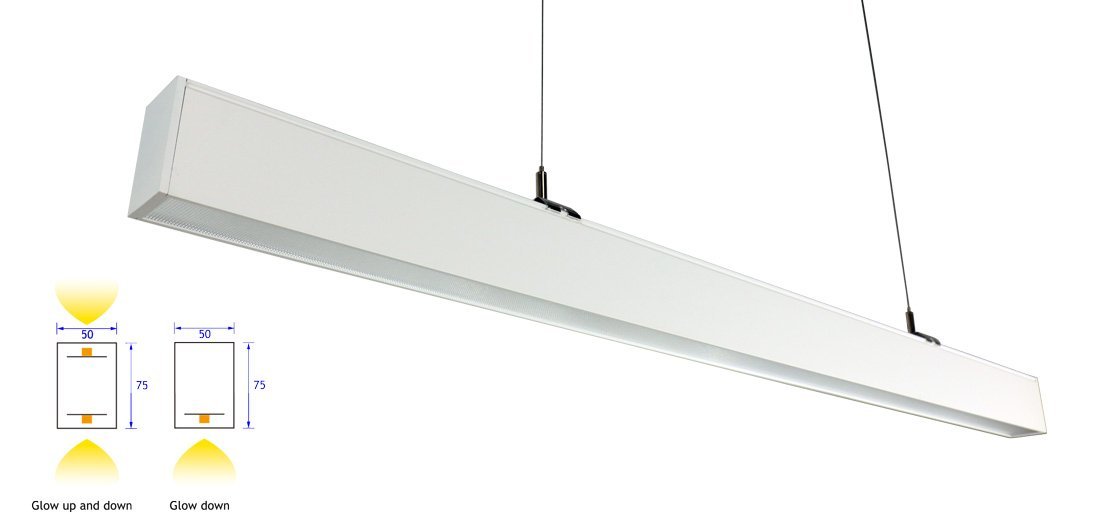

W50*H75*L600(mm), 24W(glow up and down)/20W(glow down)
W50*H75*L1200(mm), 48W(glow up and down)/40W(glow down)
W50*H75*L1500(mm), 60W(glow up and down)/50W(glow down)
W50*H75*L1800(mm), 72W(glow up and down)/60W(glow down)
Length, power can be customized

INQUIRE NOW

    • We will answer your email shortly!

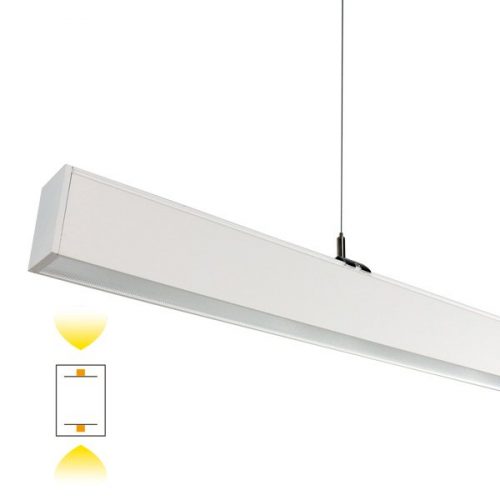

    LL5075 Linear Light
    Model No. LL5075-600S LL5075-1200S LL5075-1800S
    Power 24W/20W 48/40W 72/60W
    Light Source SMD2835
    Light Efficiency 90LM/W
    Luminous Flux 2160LM/1800LM 4320LM/3600LM 6480LM/5400LM
    Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K
    Color Rendering Index Ra>80
    Beam Angle 120°
    Input Voltage 200-240VAC
    Frequency 50-60 Hz
    Shell Color Silver / White / Black
    Dimension(mm) L600*W50*H75 L1200*W50*H75 L1800*W50*H75
    IP Rating IP20
    Operating Temperature - 30°C to + 50°C
    Life Span >50,000Hrs (Ta=30°C@L70)
    Warranty 5 Years
