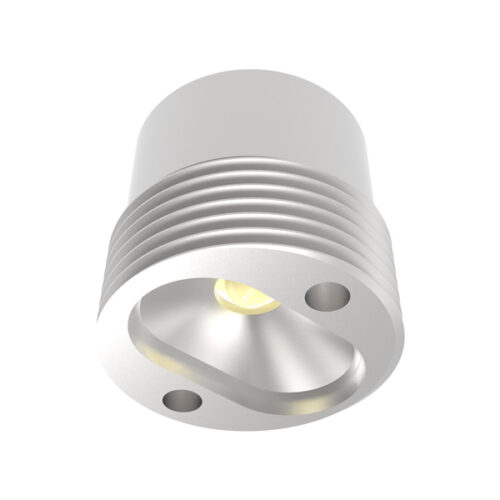

HD016(Flat)
Luminous color: 2700K / 3000K / 4000K … / CCT
1.5W, 500mA 3VDC
Thread: M16*1

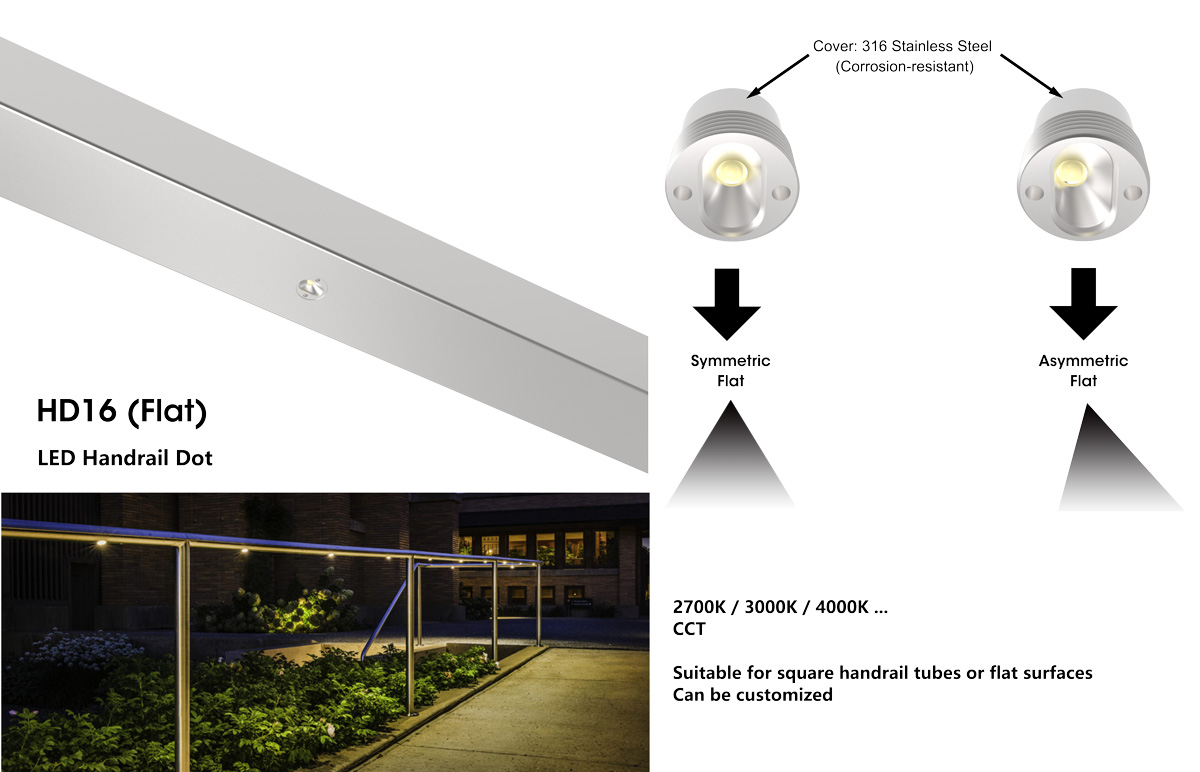

Suitable for square handrail tubes or flat surfaces
Can be customized
Model No. | HD16(Flat) |
Power | 1.5W |
Light Source | CREE XPG |
CRI | 80 / 90 |
Nominal Lumen | 223 lm(3000K) |
Delivered Lumen | 147 lm(3000K) |
Input Voltage | 500mA 3VDC |
Material | 316 stainless steel + aluminium alloy |
IP Rating | IP66 |
Size (mm) | Ø16*H15 |
Thread (mm) | M16x1 |
Operating Temperature | - 30°C to + 45°C |
Storage Temperature | - 40°C to + 70°C |
Life Span | >50,000Hrs (Ta=25°C@L70) |
Warranty | 5 Years |
