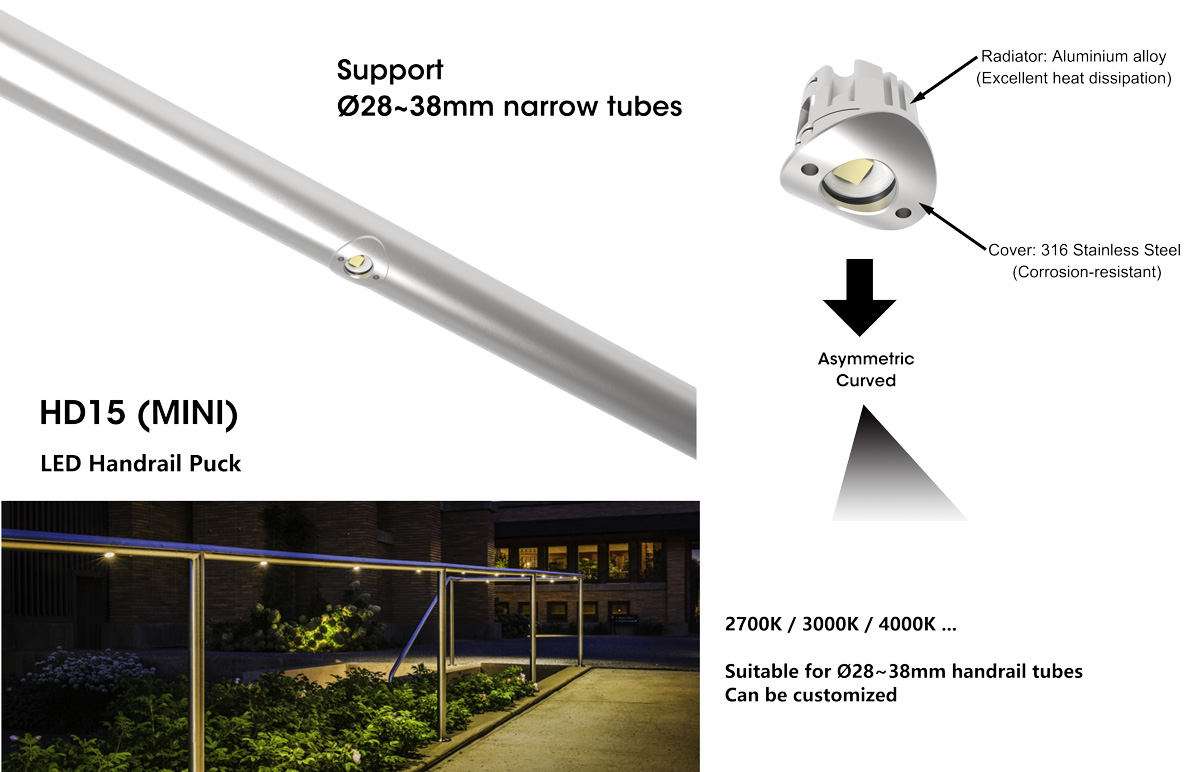

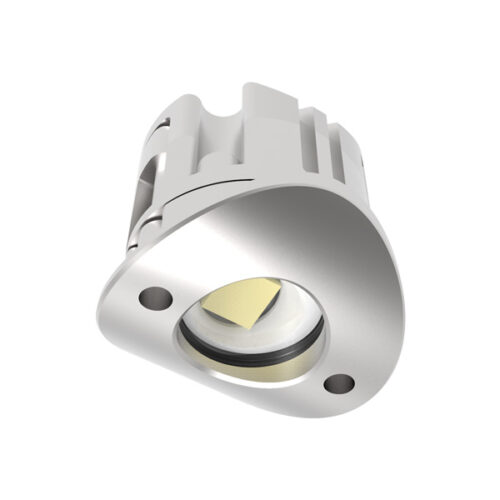

HD15-MINI – LED Handrail Puck
Luminous color:
2700K / 3000K / 4000K …
Use DC24V safe voltage
Mini size, suitable for Ø28~38mm narrow handrail tubes
Can be customized
Model No. | HD15(MINI) |
Power | 1.5W |
CRI | 80 / 90 |
Nominal Lumen | 223 lm(3000K) |
Delivered Lumen | 135 lm(3000K) |
Input Voltage | 24V DC |
Material | 316 stainless steel + aluminium alloy |
IP Rating | IP66 |
Size (mm) | Ø25*H23 |
Cut Out (mm) | Ø22 |
Operating Temperature | - 30°C to + 50°C |
Storage Temperature | - 40°C to + 70°C |
Life Span | >50,000Hrs (Ta=25°C@L70) |
Warranty | 5 Years |
