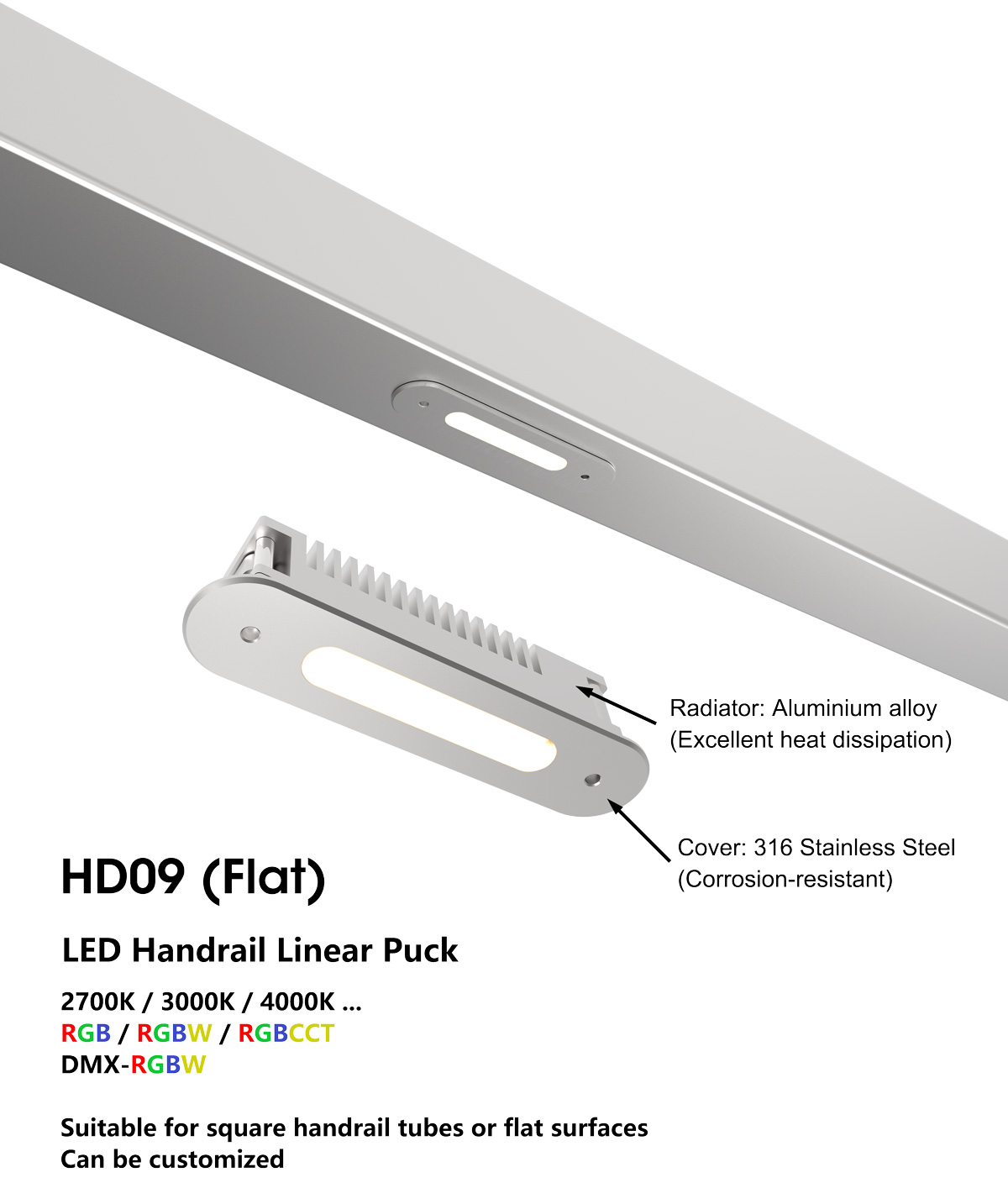

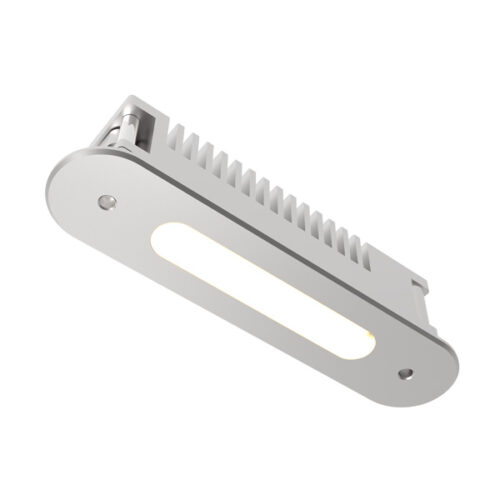

HD09(Flat) – LED Handrail Linear Puck
Luminous color:
2700K / 3000K / 4000K …
RGB / RGBW / RGBCCT
DMX-RGBW
Use DC24V safe voltage
Suitable for square handrail tubes or flat surfaces
Can be customized
Model No. | HD09(Flat) |
Power | 1.5W |
CRI | 80 / 90 |
Nominal Lumen | 225 lm(3000K) |
Delivered Lumen | 45 lm(3000K) |
Beam Angle | 100° |
Input Voltage | 12V / 24V DC |
Material | 316 stainless steel + aluminium alloy |
IP Rating | IP66 |
Size (mm) | L94*W22*H24 |
Cut Out (mm) | 80*18 |
Operating Temperature | - 30°C to + 50°C |
Storage Temperature | - 40°C to + 70°C |
Life Span | >50,000Hrs (Ta=25°C@L70) |
Warranty | 5 Years |
