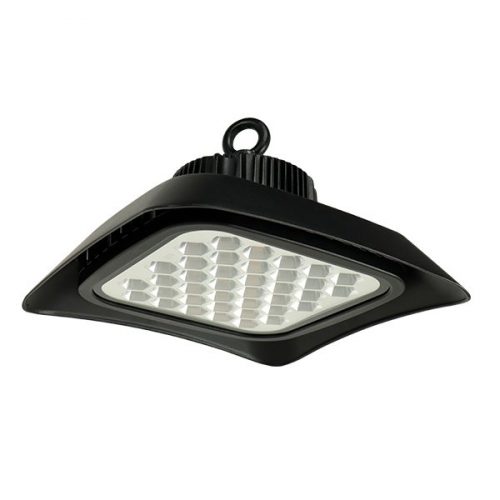

HB02
Innovative Square Highbay Light
Honeycomb lens, low glare UGR<22
Power:
100W, 150W, 200W
Light Efficiency:
150Lm/W
Model No. | HB02-100W | HB02-150W | HB02-200W |
---|---|---|---|
Power | 100W | 150W | 200W |
Light Source | SMD3030 | ||
Light Efficiency | 150LM/W | ||
Luminous Flux | 15000LM | 22500LM | 30000LM |
Color Temperature | 3000K / 4000K / 5000K / 6000K | ||
Color Rendering Index | Ra70 / Ra80 / Ra90 | ||
Beam Angle | 60° / 90° | ||
Input Voltage | AC 100-277V | ||
Power Factor | ≥0.92 | ||
Frequency | 50 / 60 Hz | ||
Dimension | 278×278x177mm | 316×316x180mm | 364×364x183mm |
IP Rating | IP65 | ||
Ambient Temperature | - 30°C to + 50°C | ||
Life Span | >50,000Hrs (Ta=30°C@L70) | ||
Warranty | 5 Years | ||
Dimmable | 1-10V dimmable / DALI dimmable |
