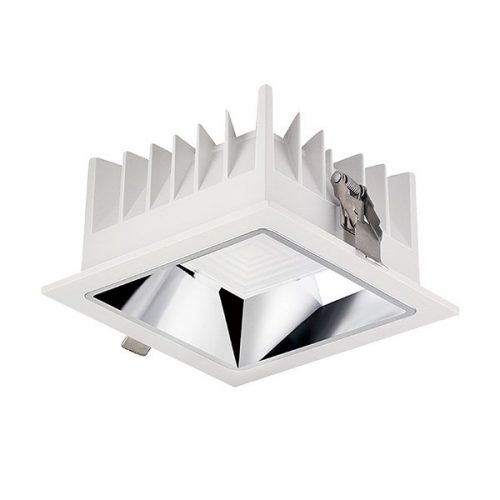

| UGR<19 DL12 Square Downlight | ||||
|---|---|---|---|---|

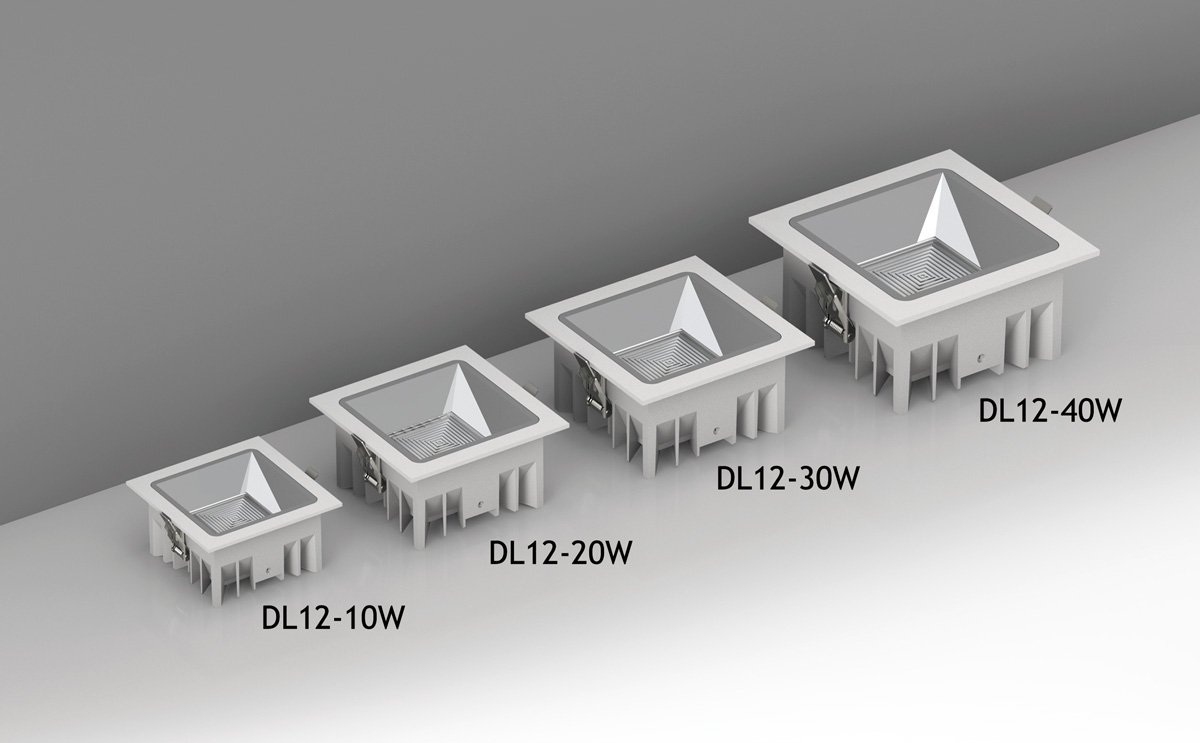

| Model No. | DL12-10W | DL12-20W | DL12-30W | DL12-40W |
| Power | 10W | 20W | 30W | 40W |
| Light Source | CREE | |||
| Light Efficiency | 70LM/W | |||
| Luminous Flux | 700LM | 1400LM | 2100LM | 2800LM |
| Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K | |||
| Color Rendering Index | Ra>80 | |||
| Beam Angle | 75° | |||
| Input Voltage | 220-240VAC | |||
| Frequency | 50-60 Hz | |||
| Shell Color | White | |||
| Dimension(mm) | 115*115*60 | 140*140*75 | 160*160*80 | 195*195*95 |
| IP Rating | IP20 | |||
| Operating Temperature | - 30°C to + 50°C | |||
| Life Span | >50,000Hrs (Ta=30°C@L70) | |||
| Warranty | 5 Years | |||
