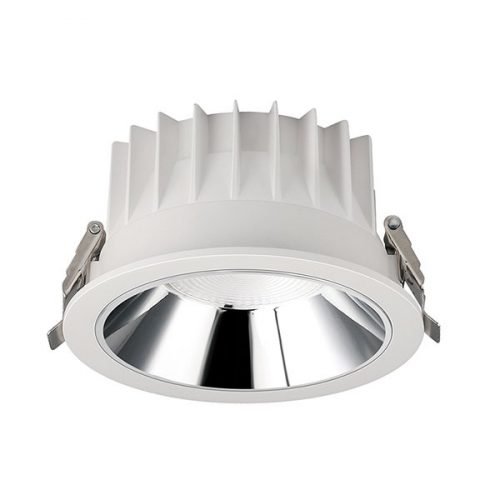

DL11 IP65 Colored Recessed Downlight
•Colored reflectors
•Custom colors are supported
•Tool-free replacement of reflectors
•IP65 waterproof
•Low glare UGR<19
•Various sizes and powers
Power:
9W /15W / 20W / 30W / 40W / 50W
Model No. | DL11-9W | DL11-15W | DL11-20W | DL11-30W | DL11-40W | DL11-50W |
Power | 9W | 15W | 20W | 30W | 40W | 50W |
Light Source | CREE COB | |||||
Light Efficiency | 100LM/W±10% | |||||
Luminous Flux | 900LM | 1500LM | 2000LM | 3000M | 4000LM | 5000LM |
Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K / 5700K | |||||
Color Rendering Index | Ra>80 / Ra>90 | |||||
Beam Angle | 15° / 24° / 36° / 55° | |||||
UGR | UGR<19 | |||||
Input Voltage | 220-240VAC | |||||
Frequency | 50-60 Hz | |||||
Reflector Color | Green / Blue / Purple / Orange / Chrome / Pink / Golden / Black / White / custom | |||||
Finish Color | White / Black | |||||
Size (mm) | Ø85*H58 | Ø105*H65 | Ø131*H75 | Ø150*H80 | Ø191*H95 | Ø215*H105 |
Cut Out (mm) | Ø75 | Ø95 | Ø115 | Ø135 | Ø175 | Ø200 |
IP Rating | IP65 | |||||
IK Rating | IK06 | |||||
Operating Temperature | - 20°C to + 45°C | |||||
Storage Temperature | - 30°C to + 70°C | |||||
Life Span | >50,000Hrs (Ta=30°C@L70) | |||||
Warranty | 5 Years | |||||
